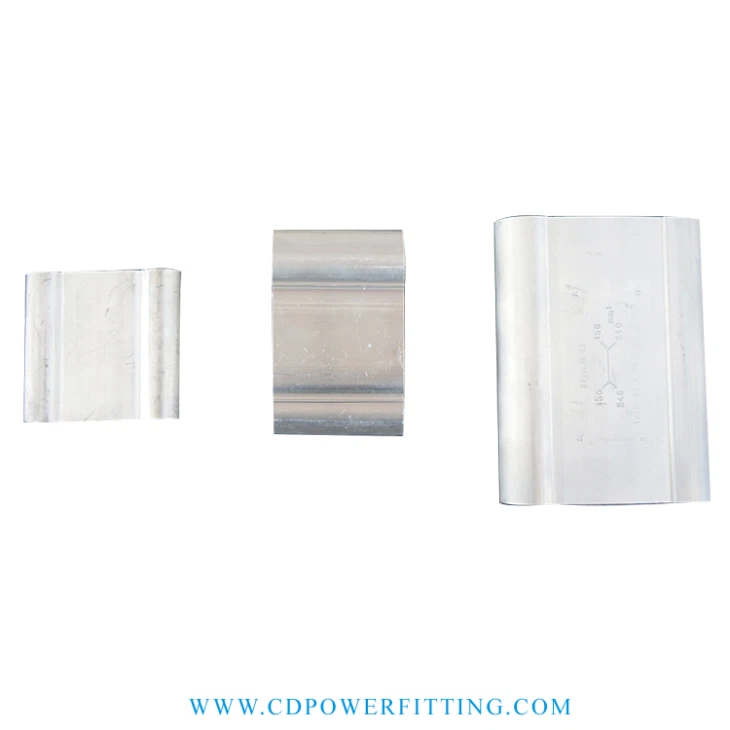

Factory Direct Sale H Type Aluminum Tap Connector / Compression Connector

We provide good power in high-quality and progress, merchandising, revenue and internet marketing and operation for Wire Rope Connector, Wedge Type Strain Clamp, Parallel Hanging Clevis For Power Line. Through renewal and transformation and the unremitting efforts of all employees, we have realized a first-class enterprise with sophisticated equipment, strong technical force and modern management. We work hand in hand with excellent domestic and foreign manufacturers, new and old customers based on the principle of honesty and pragmatism.

Descriptions:

For ACRS,aluminum or copper conductors in various dead-end terminal.

For cable taps and earth grid ring mains.

Sector-shaped conductors must be rounded with round-forming dies.

Application:

The Aluminium Compression Tap Connector is generally used in connection of jumper wires,branch lines,lead wires,service mains and other wires on the tower in overhead high-voltage and low-voltage power line,suitable for aluminum or copper wire.

Catalog No.	Specification				Pressing Connection			Type of insulation silicone    rubber
	Main Conductor		Tap Conductor		Press mold	Times	Length (mm+1)
	Diameter (mm)	Cross Section (mm2)	Diameter (mm)	Cross Section (mm2)
LH11	4.8-8.2	16-35	4.8-8.2	16-35	0-0	2	44	LHZ-1
LH21	8.3-14.0	50-95	4.8-9.6	16-50	1-2	3	63	LHZ-2
LH22	8.3-14.0	50-95	8.3-14.0	50-95	1-2	3	63	LHZ-2
LH31	13.0-22.4	95-240	4.8-11.4	16-70	3-5	3	63	LHZ-2
LH32	13.0-22.4	95-240	11.6-16.0	70-150	3-5	3	63	LHZ-2
LH41	16.2-22.4	150-240	16.2-22.4	150-240	3-5	4	114	LHZ-3
LH51	22.4-25.9	300-400	10.0-14.5	70-120	3-5	3	89	LHZ-3
LH52	22.4-25.9	300-400	14.6-18.0	120-185	3-5	3	89	LHZ-3
LH53	22.4-25.9	300-400	18.9-22.4	150-240	3-5	4	118	LHZ-3
LH54	22.4-25.9	300-400	22.4-25.9	300-400	3-5	4	118	LHZ-3
