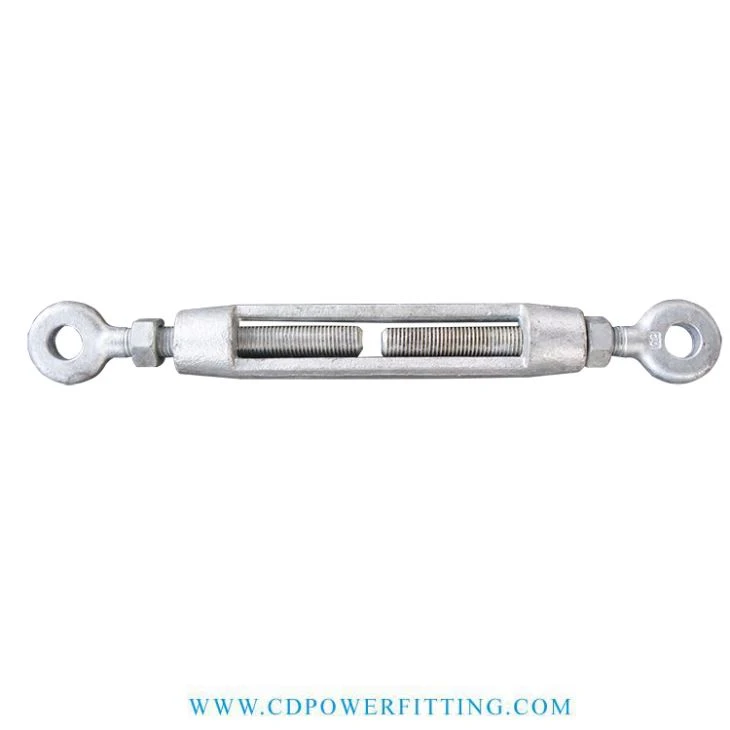

HL Type Turnbuckle For Power Line
The turnbuckle is one of the link fittings for power transmission line.it is hot-dip galvanized steel and composed of left and right hand thread adjustment rod,nut and pull rod,of which the anti-theft and locking device consist of anti-theft and locking bolt used on cover plate,dead plate and guiding plate fixed on the adjustment rod.
Description
Application:
The turnbuckle can adjust the degree of tightness by lead screw and usually used as positioning device for pull rod of high voltage tower.The specified matching sleeve should be used to turn on the anti-theft and locking bolt in installation.By sliding ring guide plate along the pull rod and then move some distance,the anti-theft and locking device can be removed without take it down.
Advantage:
1.Good anti-theft effect,safe and reliable
2.Easy to use
3.Simple structure,strong practicability, easy to be manufactured with low cost

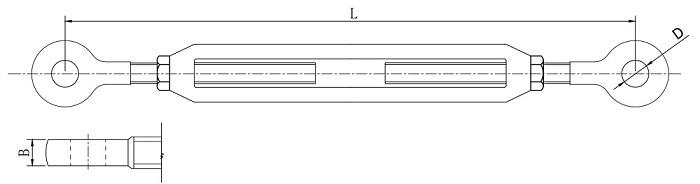

| Catalogue No. | Adjusting Range L (mm) | Dimensions(mm) | Rated Failure Load (KN) | Weight (kg) | |
| B | D | ||||
| HL-072529 | 250-290 | 16 | 18 | 70 | 1.6 |
| HL-073042 | 300-420 | 16 | 20 | 70 | 1.9 |
| HL-073045 | 340-500 | 16 | 18 | 70 | 2.0 |
| HL-073552 | 350-520 | 16 | 18 | 70 | 2.1 |
| HL-074772 | 470-720 | 16 | 18 | 70 | 2.5 |
| HL-075080 | 500-800 | 16 | 18 | 70 | 2.6 |
| HL-075389 | 530-890 | 16 | 20 | 70 | 2.9 |
| HL-075686 | 560-800 | 16 | 20 | 70 | 3.4 |
| HL-076498 | 640-980 | 16 | 18 | 70 | 2.6 |
| HL-102529 | 250-290 | 16 | 20 | 100 | 2.4 |
| HL-103650 | 360-500 | 16 | 20 | 100 | 3.5 |
| HL-104565 | 450-650 | 16 | 20 | 100 | 3.5 |
| HL-104772 | 470-720 | 16 | 20 | 100 | 4.0 |
| HL-105389 | 530-890 | 18 | 20 | 100 | 4.8 |
| HL-105775 | 570-750 | 16 | 22 | 100 | 4.2 |
| HL-106498 | 640-980 | 16 | 20 | 100 | 4.3 |
| HL-126090 | 600-900 | 16 | 24 | 120 | 5.0 |
| HL-205773 | 570-730 | 24 | 30 | 200 | 9.7 |
