Hey there! As a supplier of U Shackles for power lines, I often get asked about how to install these little but crucial components on a curved power line. It might seem a bit tricky at first, but with the right know - how, it can be a smooth process. So, let's dive right in and break it down step by step.
Understanding the Basics of U Shackles for Power Lines
Before we start with the installation, it's important to understand what U Shackles are and why they're used in power lines. U Shackles are U - shaped connectors that are used to attach various components in a power line system. They're made of high - strength materials like steel to withstand the mechanical stress and electrical loads.

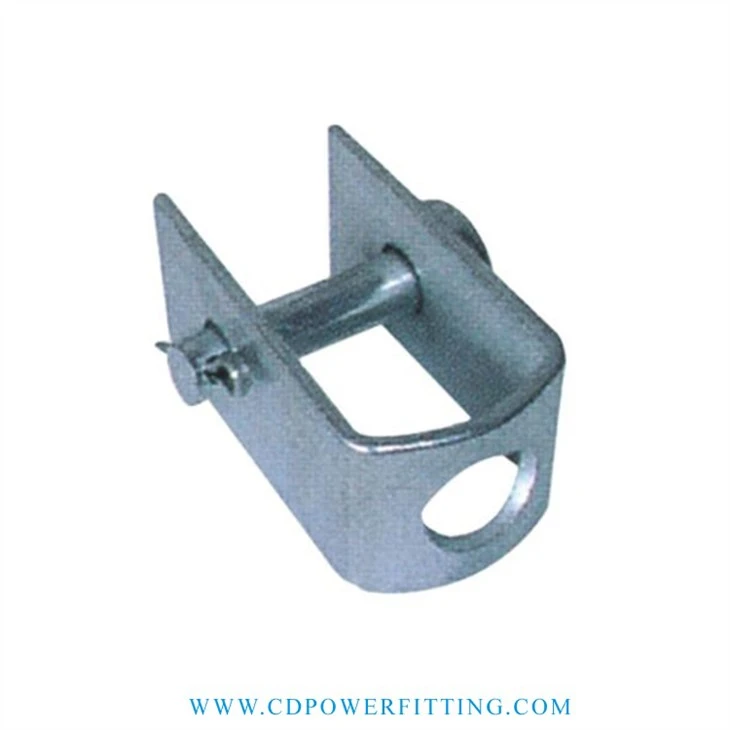

We offer different types of U Shackles, such as D Shackle U Shackle, U Clevis Tongue, and Twisted U Shackle. Each type has its own unique features and applications, so make sure you choose the right one for your specific curved power line setup.
Pre - installation Preparations
- Inspection: First things first, you need to inspect the U Shackle and the curved power line. Check the U Shackle for any signs of damage, like cracks, corrosion, or deformation. If you find any issues, don't use it. For the power line, look for any irregularities in the curve, such as sharp bends or rough surfaces that could affect the installation or the performance of the U Shackle later on.
- Measurement: Measure the diameter of the curved power line accurately. This is crucial because you need to make sure the U Shackle you're using has the right size to fit snugly around the line. A U Shackle that's too small won't fit, and one that's too large won't provide a secure connection.
- Gathering Tools: You'll need a few tools for the installation. These typically include a wrench, a torque wrench (to ensure the proper tightening), and possibly a lubricant to make the installation process easier. Make sure all your tools are in good working condition before you start.
Step - by - Step Installation Process
- Positioning the U Shackle: Carefully place the U Shackle around the curved power line at the desired location. This might take a bit of maneuvering, especially if the curve is tight. Try to align the U Shackle so that it's centered on the power line and the two ends of the U are parallel to each other.
- Inserting the Pin: Once the U Shackle is in position, insert the pin through the holes at the ends of the U. The pin is what holds the U Shackle together and secures it to the power line. Make sure the pin goes all the way through and that it's inserted in the correct orientation.
- Tightening the Nut: After inserting the pin, place the nut on the end of the pin. Use a wrench to start tightening the nut. As you tighten, keep an eye on the U Shackle to make sure it doesn't shift out of position. Once the nut is hand - tight, use a torque wrench to tighten it to the recommended torque value. This value can usually be found in the product specifications provided by the U Shackle manufacturer.
- Checking the Connection: After tightening the nut, give the U Shackle a gentle shake to check the connection. It should feel secure and not move around. If it feels loose, re - check the tightening of the nut and make any necessary adjustments.
Dealing with Challenges on Curved Power Lines
- Curvature Variations: One of the main challenges when installing U Shackles on curved power lines is dealing with variations in the curvature. In some cases, the curve might be more pronounced in certain areas. To handle this, you might need to adjust the position of the U Shackle slightly to find the most stable spot. You can also use shims or spacers to fill any gaps between the U Shackle and the power line if necessary.
- Accessibility: Sometimes, the location of the curved power line might make it difficult to access for installation. In such cases, you might need to use specialized tools or equipment, like a long - handled wrench or a telescopic pole, to reach the installation point. Safety should always be your top priority, so make sure you have the proper safety equipment and follow all safety procedures when working in hard - to - reach areas.
Maintenance and Safety Considerations
- Regular Inspections: After the installation, it's important to conduct regular inspections of the U Shackles. Check for any signs of wear and tear, such as loosening of the nut, corrosion, or damage to the U Shackle itself. If you notice any issues, replace the U Shackle immediately to prevent any potential problems in the power line system.
- Safety Precautions: When working with power lines, safety is non - negotiable. Always wear appropriate safety gear, such as gloves, safety glasses, and a hard hat. Make sure the power line is de - energized before starting the installation or maintenance work. If you're not sure how to do this safely, consult a professional electrician.
Why Choose Our U Shackles
As a supplier, we take pride in offering high - quality U Shackles for power lines. Our products are made from top - notch materials and undergo strict quality control measures to ensure they meet the highest industry standards. We also provide excellent customer support, so if you have any questions or need help with the installation, our team is always here to assist you.
If you're in the market for U Shackles for your curved power line projects, we'd love to hear from you. Whether you're a small - scale contractor or a large - scale utility company, we can provide the right U Shackles to meet your needs. Contact us to start a procurement discussion, and let's work together to ensure the reliability and safety of your power line systems.
